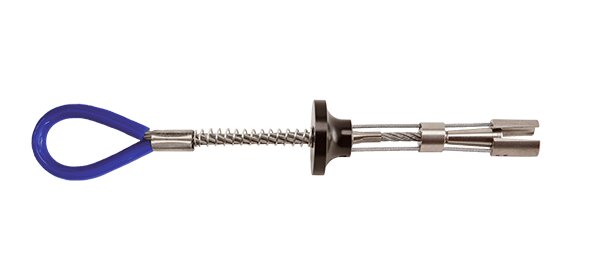

3/4" Removeable Bolt Anchor

A popular removable bolt anchor, this portable concrete anchorage connector can be used in a variety of fall protection applications. This reusable concrete anchor is a lightweight, easy to use bolt providing convenient anchorage in concrete. The anchor requires a pre-drilled hole of 3/4 inch and 3-1/2-inch minimum depth in 3000 psi concrete. It can be used in any direction as a fall protection anchor and is reusable with its easy to insert and remove design.

Specifications:

• The lightweight design is easy to insert and remove
• Drill hole of .75-inch with a 3.5-inch minimum depth
• Requires a minimum of 3000 psi concrete
• Multi-directional use
• Minimum Breaking Strength (MBS): 5,000 lbf / 22.2 kn
• Meets ANSI and OSHA Standards
  • ANSI/ASSP Z359.18-2017
  • OSHA 29 CFR 1910.140 & 1926.502
