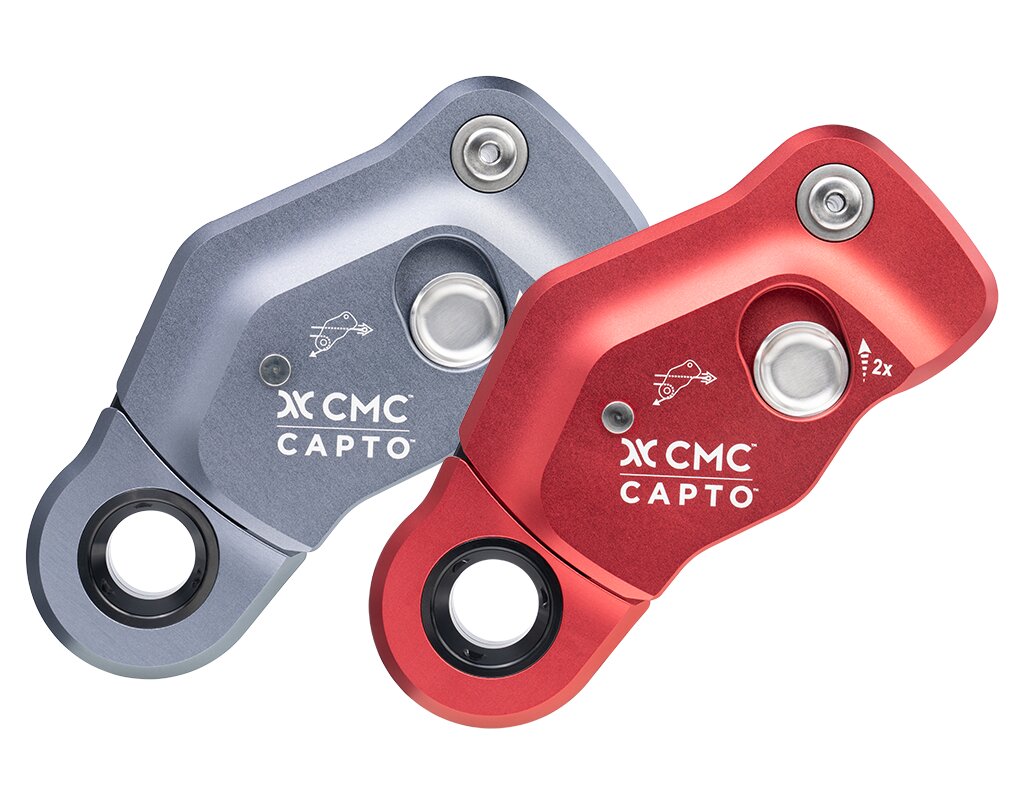

CAPTO - 13MM - Red

CAPTO installs quickly and easily on tensioned and un-tensioned lines, and is designed to be used one-handed. The double-action side plate protects against accidental opening and moves the cam out of the rope path to facilitate rigging. Both the rope grab and pulley are immediately accessible, making it possible to build a 3:1 haul system in a single motion without using knots, hitches, or additional equipment. Compared to a traditional 3:1 involving a Prusik and a G-Rated pulley and carabiner; CAPTO is faster to install, lighter weight, and a third of the length. Its compact size maximizes the haul field and reduces the number of resets. Adding more mechanical advantage is simple and straightforward. CAPTO smoothly progresses from a 3:1 to a 5:1, and works well in combination with piggy back systems and additional CAPTOs.

Features:

• Combines a rope grab, pulley, and becket in a compact device for hauling & ascending.
• Incorporates a force-limiting V-groove Cam designed to provide overload protection.
• Installs quickly on tensioned and un-tensioned lines, no need for knots or hitches.
• Opens one-handed and gives simultaneous access to components for rapid rigging.
• Builds efficient M/A systems and smoothly progresses from a 3:1 to a 5:1 M/A.
• Releases and resets easily, even after high loading, making it ideal for rescues.
• Travels down rope in vertical systems, resetting and maximizing the haul field.
• Allows installation of an accessory loop for remote resets and device stowage.
• Provides an integrated becket for M/A components, lanyards, and foot loops.
• Works well in combination with piggy back systems and additional CAPTOs.
• Replaces multiple devices in one, streamlining training and operations.
• Patented. Made in the USA.

Components:

• Multi-functional rope grab with a force-limiting V-groove Cam
• High-efficiency, 44.5 mm (1.75 in) diameter sheave pulley
• Integrated becket independent from rope loading / unloading
• Moving sideplate with double-action release button
• Hollow cam axle for accessory loop installation (3.9 mm diameter)
• Ridged Cam Grip for one-handed device positioning

Certifications:

• CAPTO 13 mm Red:
  • NFPA
    • GENERAL USE (G), ROPE GRAB, Ø 12.5-13 MM
    • GENERAL USE (G), MBS 36 KN (8,093 LBF) PULLEY*, Ø 13 MM MAX

*Pulley strength testing performed by using CAPTO Becket as Pulley Attachment Point.
